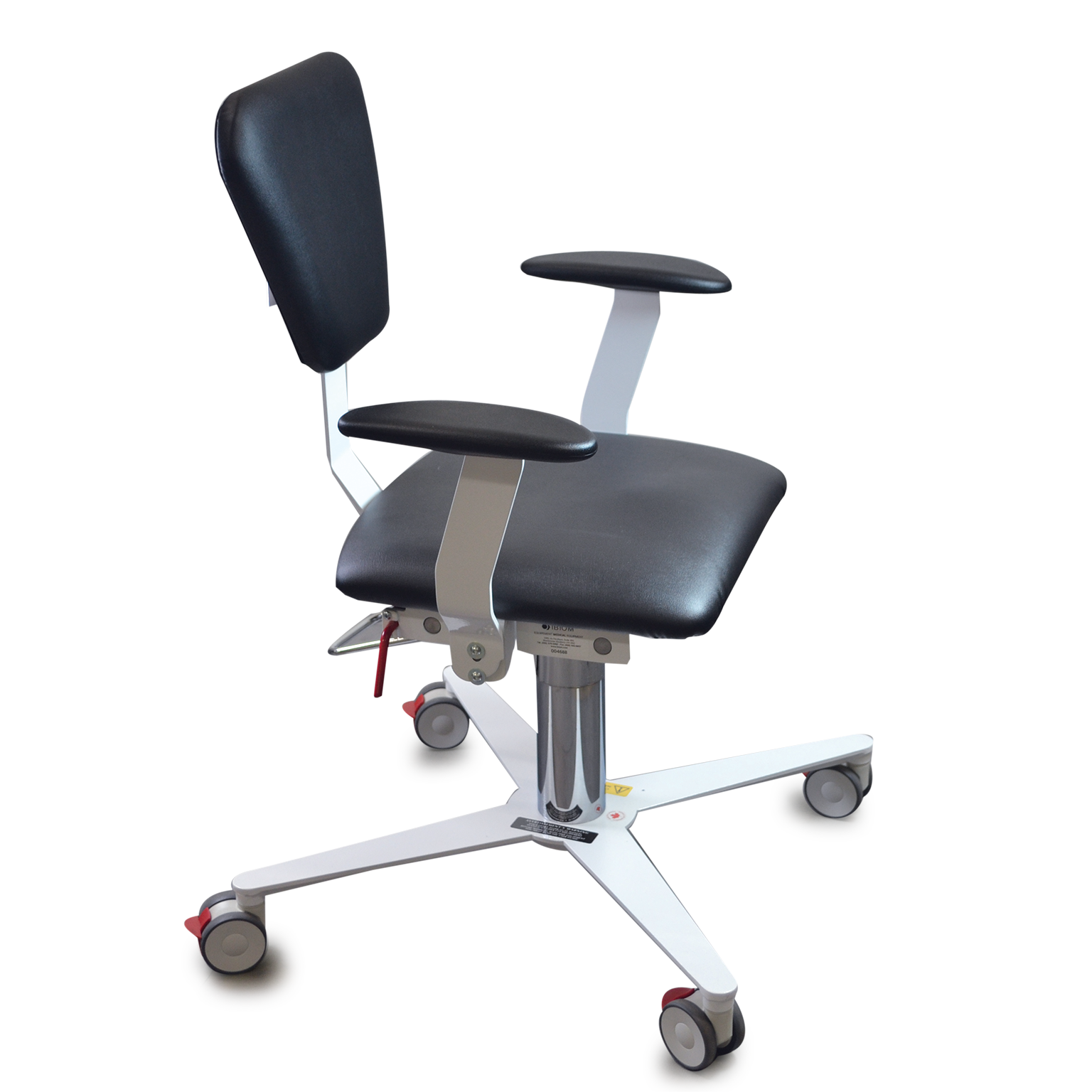

ERGO XR

Home/Products/ERGO XR

Designed for radiology

The ERGO XR is designed to improve patient positioning for X-rays in a variety of seated positions.

Maximum capacity of 450 lb.

Adjustments:

Seat height:
19.5 to 26.5 inches

Seat placement:
6 inches side to side (on ball bearings)

Armrest angle:
90°

Backrest angle:
90° on both sides

Dimensions:

Base:
23 x 23 inches

Seat:
18 inches (W) x 20 inches (D)

Backrest:
12 inches (W) x 13 inches (H)

Arms:
3 inches (W) x 10 inches (L)

Lifetime warranty
on steel structure and welds;

two-year warranty on mobile parts

Completely designed and engineered in Canada

Designed for radiology:

  • Retractable for front images
  • V-shape allows the Bucky to be brought as low as possible

ERGO XR backrest

Retractable for side images.

ERGO XR arms

Seat slides 6 inches side to side for optimal patient positioning in front of the Bucky.

ERGO XR hydraulic lift

Allows for height adjustment from 19.5 to 26.5 inches and locks rotation.

Fabric is tested for a range of common hospital and clinic cleaning products. It is Oxivir and Virox resistant—a must when infection control is a priority.

Seam-free cushions with integrated gel enhance patient comfort.

ERGO XR cushion

3-inch twin casters with individual locks.
